|Place of Origin:||China|
|Certification:||CE Rohs FCC|
|Minimum Order Quantity:||one unit|
|Packaging Details:||neutral packaging or custom|
|Delivery Time:||sample for 5-8 working days,batch order for 22-35 working days|
|Payment Terms:||PayPal,Bank Wire,Western Union etc.|
|Supply Ability:||3000 pieces every month|
|Type:||Wall Mount Android Touch Panel||Power Supply:||POE / DC IN (9V - 24V)|
|Display:||7 Inch IPS Display, Resolution:1024 X 600, Brightness: 350 Cd/m2||Wall Mount:||Inwall Flush,On Wall Surface,Glass Wall Etc.|
|Feature:||Microphone And Speakers,Camera, Wifi, Bluetooth 4.0||CPU:||ARM Cortex A83T Otca Core, 1.2Ghz|
|Customized:||POE,RS485/RS232,etc.||Application:||Meeting Room,Small House,Industrial Control|
|Color:||Black And White||RAM:||2GB|
|Flash:||8GB||Special:||Custom Splash Screen|

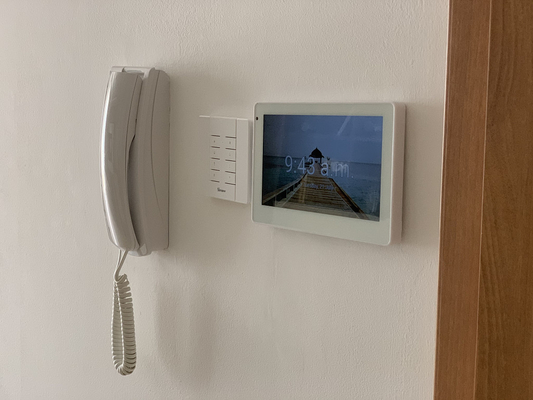

This industrial application 7 inch android touch panel supports inwall flush mount,onwall surface mount,glass wall mount or panel embedded mount.
Available to customize POE, NFC,LED light side bars,RS232/RS485,GPIO, Relay etc optional configurations based on your specific demand.
Free to provide the customized splash screen with clients logo and to pre-install clients apks.
|Hardware Specification||Solution||Allwinner’s A83T|
|CPU||ARM Cortex Octa-Core, 1.2Ghz|
|Display||7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2|
|Software Feature||System||Google Android 6.0.1|
|Video||H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
|Audio||One Speaker 1 X 1 Watt (Integrated 3W Amplifier)|
|DC IN Power Terminal (9V-36V)|
|Network||WIFI+BLUETOOTH||WIFI (802.11b/g/n), Bluetooth 4.0 support BLE|
|LAN Port||Ethernet RJ45|
|Power Supply||DC IN||DC 9V - 36V|
|Boot Up||Auto Boot||Auto Boot Up When Power Supplies|
|Power over Ethernet or PoE technology describes a system to safely transfer electrical power, along with data, to remote devices over standard category 5 cable in an Ethernet network. It does not require modification of existing Ethernet cabling infrastructure.
The IEEE 802.3af PoE standard provides up to 15.4 W of DC power (minimum 44 VDC and 350 mA) to each device. Only 12.95 W is assured to be available at the powered device as some power is dissipated in the cable.
Long distance transmission is available for our max power need about 7w, safe and easy to be used with other POE switch or POE injector ( IEEE 802.3af PoE standard)
|What is PD and PSE?|
|Power Over Ethernet, IEEE802.3af, is constructed by Power Sourcing Equipment (PSE) and Power Device (PD). Our Android Tablet works as a PD and which could powered by some PSE (POE injetor / POE switch)|
We will offer sample app for your testing and original source code for your program.
RS232/RS485 Sample app interface
As a full service manufacturer of tablet, we offer OEM and ODM services.
1. For sample (Payment method: credit card, T/T, Western Union)
2. For bulk order(more than100pcs), customers should pay 30% deposit first, 70% balance should be paid before delivery.(Payment method: T/T)
Question: Are you manufacturer?
Answer: Yes, we are professional manufacturer for home automation with the experience of 16 years.
Question: What is the Minimum Order Quantity(MOQ)?
Answer: No quantity limited, sample order is acceptable.
Question: What is the lead time? (How long do you need to prepare my goods?)
Answer: 5-7days for sample orders, 20-25 days for mass production orders(based on different quantities, OEM, etc.)
Question: How will you deliver my goods to me?
Answer: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.
Question: How long do I need to wait before my goods arrive?
Answer: 3-5 days for international express
Question: Can you put my brand name(logo) on these products?
Answer: Of course, OEM service is the most important part of our trade purpose.
Question: What service do you have?
Answer: We have full-technique support(offer sample app and original source code for RS485,GPIO, NFC, etc.)
Question: What is your warranty?
Answer: Our warranty is 1 year after delivery,SIBO pays high attention to after-sales service. For those out of warranty, we repair you without labor charge collection.
Question: What is your product quality?
Answer: 1. We promise to use the best (original) components to ensure our product in high level.
2. All products will be carefully tested by our QC department.
3. Before test, all android tablet PC have 48 hours aging test.
