10" Wall/Panel Mount Industrial HMI Touch Tablet Android OS Rooted Auto Boot Kiosk

10" Wall/Panel Mount Industrial HMI Touch Tablet Android OS Rooted Auto Boot Kiosk

    • 10" Wall/Panel Mount Industrial HMI Touch Tablet Android OS Rooted Auto Boot Kiosk
    • 10" Wall/Panel Mount Industrial HMI Touch Tablet Android OS Rooted Auto Boot Kiosk
    • 10" Wall/Panel Mount Industrial HMI Touch Tablet Android OS Rooted Auto Boot Kiosk
    • 10" Wall/Panel Mount Industrial HMI Touch Tablet Android OS Rooted Auto Boot Kiosk
    • 10" Wall/Panel Mount Industrial HMI Touch Tablet Android OS Rooted Auto Boot Kiosk
  • 10" Wall/Panel Mount Industrial HMI Touch Tablet Android OS Rooted Auto Boot Kiosk

    Product Details:

    Place of Origin: China
    Brand Name: Sibo
    Certification: CE FCC
    Model Number: Q8919

    Payment & Shipping Terms:

    Minimum Order Quantity: one piece
    Packaging Details: neutral packaging or custom
    Delivery Time: 7 days for sample order,25 days for batch order
    Payment Terms: PayPal,Bank Wire,Western Union etc.
    Supply Ability: over 3000 units each month
    Contact Now
    Detailed Product Description
    Interface: DC IN/USB/RJ45/Micro USB Power Supply: DC IN (9 - 24 V)
    Display: 10 Inch IPS Display, Resolution:1280 X 800, Brightness: 350 Cd/m2 Feature: Microphone,Speakers,Camera, Wifi&Bluetooth
    CPU: ARM Cortex A83T Octa Core, 1.2Ghz RAM: 2GB
    Nand Flash: 8GB Customized: RS232/RS485/GPIO Etc.
    Keyword: Wall Mounting 10 Inch Android 6 OS POE Touch Screen

    10" Wall/Panel Mount Industrial HMI Touch Tablet Android OS Rooted Auto Boot Kiosk









    This 10 Inch Android OS rooted industrial HMI touch tablet can be customized with different optional configuration based on different clients requirement or applications.



    Especially POE ( IEEE 802.3af 48V standard) option,single RJ45 cable; clean installation,only one ethernet cable can be provided both power and data to this slim 10" android OS rooted touch tablet.



    And the adjustable RED/GREEN/BLUE LED light left/right sides bars can be integrated for software redeveloping,including demo apk and source code.



    Optional accessories can be also available NFC reader (13.56MHz Mifare MF1 IC S50 CARD), front Proximity sensor & Ambient Light Sensor and Serial communication port RS485/RS232 as well as GPIO.















    Advantages:



    • Android 6.0.1 OS rooted,built in Google Play Store
    • Auto boot up when power supplies
    • POE Ethernet RJ45 port ( IEEE 802.3 af 48V standard POE) or DC IN 9-24V

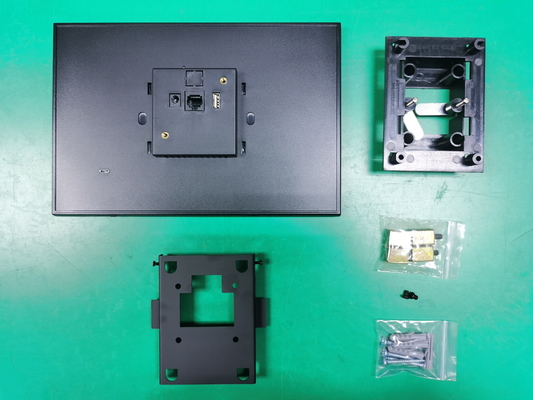

    • On wall surface(23 degree angled), inwall flush mounting,glass wall mounting
    • Available to add adjustable RGB LED light indicator,will provide the demo apk and source code
    • Programmable physical buttons(function A button)
    • free to provide the customized splash screen with your company logo
    • Available to provide demo backlight control apk and source code

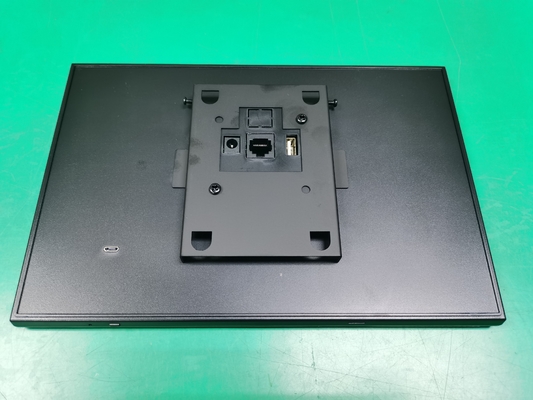

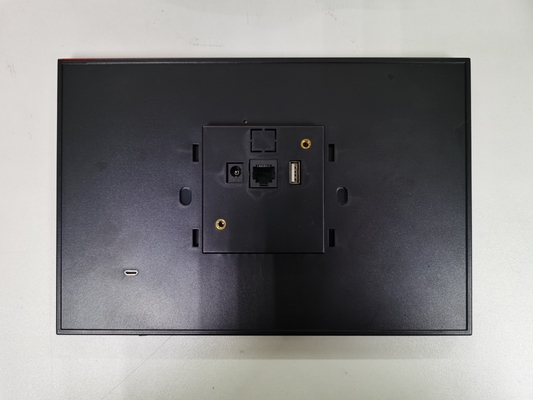

    Back Interface:

    • DC IN (9-24V)

    • RJ45

    • USB 2.0
    • Optional for one group RS232/RS485/GPIO

    • Micro USB port(upgrading/flashing need)



    Network:

    • WLAN(WiFi 802.11b/g/n)
    • LAN Ethernet RJ45 port
    • Bluetooth V4.0 support Bluetooth Low Energy (BLE)
