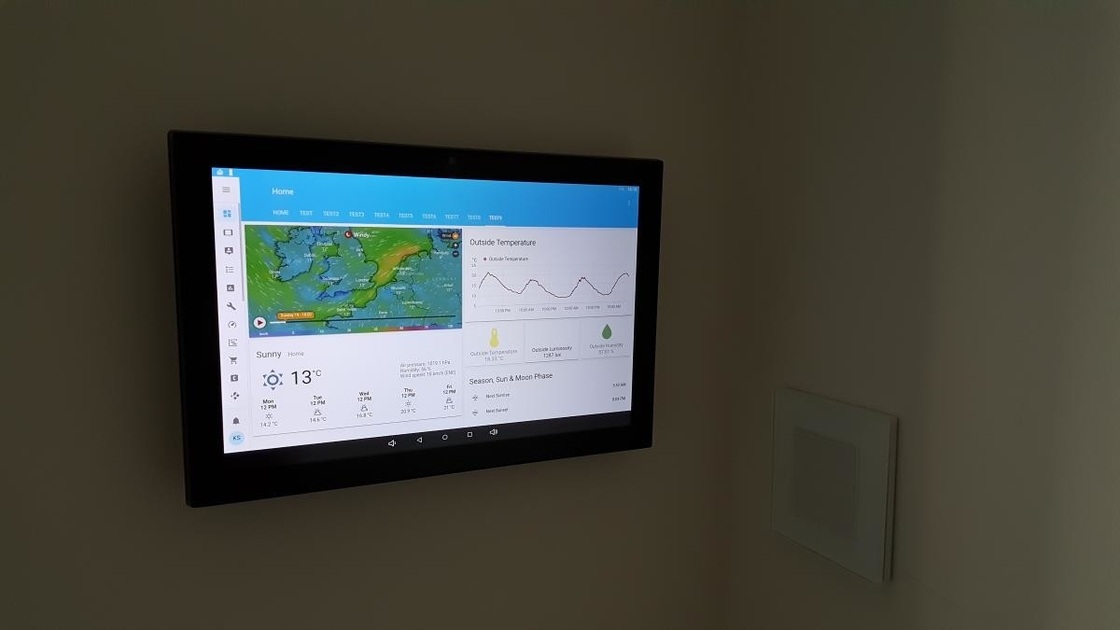

10 Inch Wall Mounting Android RS485 Terminal POE Touch Screen For Smart Building Control

10 Inch Wall Mounting Android RS485 Terminal POE Touch Screen For Smart Building Control

This android OS 10 inch android touch screen can be customized with different optional configuration based on different clients requirement.

Once sample approved,available to customized with your own designing mounting bracket.

Especially POE powering:Single cable; clean installation. IEEE 802.3af 48V standard,only one ethernet cable can be provided both power and data to this slim 10" android touch screen.

Optional accessories can be also available for adjustable LED light bars and front NFC reader (13.56MHz Mifare MF1 IC S50 CARD), front Proximity sensor & Ambient Light Sensor and Serial communication port RS485/RS232 as well as GPIO.

Of course gonna provide you the Source code for your further software developing/integration.

Advantages:

• Android 6.0.1 OS rooted,built in Google Play Store
• Auto boot up when power supplies,directly into your Kiosk Mode
• POE Ethernet RJ45 port ( IEEE 802.3 af 48V standard POE) or DC IN 9-24V
• On wall surface(23 degree angled), inwall flush mounting,glass wall mounting
• Available to add adjustable RGB LED light indicator,will provide the demo apk and source code
• Programmable physical buttons(function A button)
• free to provide the customized splash screen with your company logo

Back Interface:

• DC IN (9-24V)

• RJ45

• USB 2.0

• Optional for one group RS232/RS485/GPIO

• Micro USB port(upgrading need)

Network:

• WLAN(WiFi 802.11b/g/n)
• LAN Ethernet RJ45 port
• Bluetooth 4.0 support Bluetooth Low Energy BLE

​
