No Control Button 8 Inch Aluminum Alloy Android Panel Body Temperature Sensor Wall Surface Mount

No Control Button 8 Inch Aluminum Alloy Android Panel Body Temperature Sensor Wall Surface Mount

    • No Control Button 8 Inch Aluminum Alloy Android Panel Body Temperature Sensor Wall Surface Mount
    • No Control Button 8 Inch Aluminum Alloy Android Panel Body Temperature Sensor Wall Surface Mount
    • No Control Button 8 Inch Aluminum Alloy Android Panel Body Temperature Sensor Wall Surface Mount
    • No Control Button 8 Inch Aluminum Alloy Android Panel Body Temperature Sensor Wall Surface Mount
  • No Control Button 8 Inch Aluminum Alloy Android Panel Body Temperature Sensor Wall Surface Mount

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: Sibo Or OEM
    Certification: CE
    Model Number: SV-1081D

    Payment & Shipping Terms:

    Minimum Order Quantity: One piece
    Packaging Details: neutral packaging or custom
    Delivery Time: 7 days for sample order,25 days for batch order
    Payment Terms: PayPal,Bank Wire,Western Union etc.
    Supply Ability: 2000 pieces each month
    Contact Now
    Detailed Product Description
    Operating System: Android 8 CPU: RK3288 Quad-core (optional RK3399 Six-core, MSM8953
    Material: Aluminum Screen: 8.0 Inch IPS LCD Screen
    Storage: EMMC 8GB Products Status: Stock
    Display Resolution: 800*1280 Camera: Binocular Wide Dynamic 2.0 MP Camera
    Network: Ethernet And Wireless (Wifi) Interface: Ethernet,USB,RS232,Relay,Wiegand
    Operating Temperature: 0℃~60℃ Mounting: Standing Or Wall Mounted

    No Control Button 8 Inch Aluminum Alloy Android Panel Body Temperature Sensor Wall Surface Mount







    Sibo newest 8 Inch Screen Android Panel supports Face recognition & Body temperature measurement, applying for access control,attendance system etc. The android OS terminal use industrial-grade binocular wide dynamic camera, night infrared and LED dual photo flood lamp. It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.


    Building Automation Android Terminal 8 inch 800*1280 LCD IPS Screen With RFID Reader
    Building Automation Android Terminal 8 inch 800*1280 LCD IPS Screen With RFID Reader
    * Supports accurate face recognition and comparison while wearing a mask.
    * The measurement error is plus or minus 0.5 ℃.
    * It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.
    Building Automation Android Terminal 8 inch 800*1280 LCD IPS Screen With RFID Reader

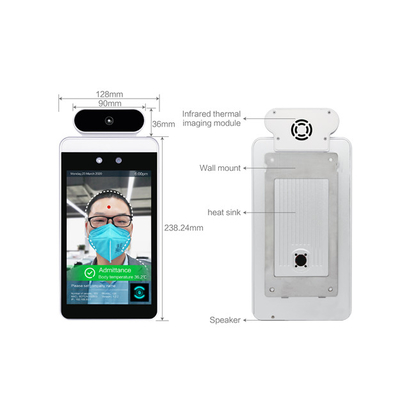

    DIMENSIONS

    Model SW-1081D
    Camera Resolution 2 million pixels
    Type Binocular wide dynamic camera
    Aperture F2.4
    Focusing distance 50-150cm
    White balance auto
    Photo flood light LED and IR dual photo flood light
    Screen Size 8.0 inch IPS LCD screen
    Resolution 800×1280
    Touch Not supported (optional support)
    Processor CPU RK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core)
    Storage EMMC 8G
    Interface Network module Ethernet and wireless (WIFI)
    Audio 2.5W / 4R speakers
    USB 1 USB OTG, 1 USB HOST standard A port
    Serial communication 1 RS232 serial port
    Relay output 1 door open signal output
    Wiegand One Wiegand 26/34 output, one Wiegand 26/34 input
    Upgrade button Support Uboot upgrade button
    Wired network 1 RJ45 Ethernet socket
    Function Credit card reader None (optional IC card reader, ID card, ID card)
    Face Detection Supports detection and tracking of multiple people at the same time
    Face library Up to 30,000
    1: N face recognition Support
    1: 1 face comparison Support
    Stranger detection Support
    Identify distance configuration Support
    UI interface configuration Support
    Upgrade remotely Support
    Interface Interfaces include device management, personnel / photo management, record query, etc.
    Deployment method Support public cloud deployment, privatized deployment, LAN use, stand-alone use
    Infrared thermal imaging module Temperature detection Support
    Temperature detection distance 1 meter (optimal distance 0.5 meter)
    Temperature measurement accuracy ≤ ±0.5℃
    Temperature measurement range 10℃~42℃
    Thermal field of view 32 X 32℃
    Visitors' temperature is normal and released directly Support
    Abnormal temperature alarm Support (temperature alarm value can be set)
    General parameters Power DC12V(±10%)
    Operating temperature 0℃~60℃
    Storage temperature -20℃~60℃
    Power consumption 13.5W(Max)
    Installation method Gate bracket installation
    Size Standard:274.24*128*21.48(mm)
    Packing List Machine * 1, power adapter * 1, manual * 1, certificate of conformity * 1








    Building Automation Android Terminal 8 inch 800*1280 LCD IPS Screen With RFID Reader
    WIRE INTERFACE

    7 Wire Interface:
    Building Automation Android Terminal 8 inch 800*1280 LCD IPS Screen With RFID Reader
    9 Wire Interface:
    Building Automation Android Terminal 8 inch 800*1280 LCD IPS Screen With RFID Reader
    INSTALLATION
    Wall mount:
    Building Automation Android Terminal 8 inch 800*1280 LCD IPS Screen With RFID Reader

    Stand mount:

    Building Automation Android Terminal 8 inch 800*1280 LCD IPS Screen With RFID Reader



    Building Automation Android Terminal 8 inch 800*1280 LCD IPS Screen With RFID ReaderBuilding Automation Android Terminal 8 inch 800*1280 LCD IPS Screen With RFID Reader

    Building Automation Android Terminal 8 inch 800*1280 LCD IPS Screen With RFID Reader
    No Control Button 8 Inch Aluminum Alloy Android Panel Body Temperature Sensor Wall Surface Mount
