|Place of Origin:||China|
|Minimum Order Quantity:||One piece|
|Packaging Details:||neutral packaging or custom|
|Delivery Time:||7 days for sample order,25 days for batch order|
|Payment Terms:||PayPal,Bank Wire,Western Union etc.|
|Supply Ability:||2000 pieces each month|
|Interface:||DC IN/USB/RJ45/Micro USB||Power Supply:||DC IN (9 - 24 V)|
|Display:||10 Inch IPS Display, Resolution:1280 X 800, Brightness: 350 Cd/m2||Feature:||Microphone,Speakers,Camera, Wifi&Bluetooth|
|CPU:||ARM Cortex A83T Octa Core, 1.2Ghz||RAM:||2GB|
|Nand Flash:||8GB||Customized:||POE,LED Light,RS232/RS485/GPIO Etc.|
|Keyword:||10 Inch Touch Screen POE Panel PC|

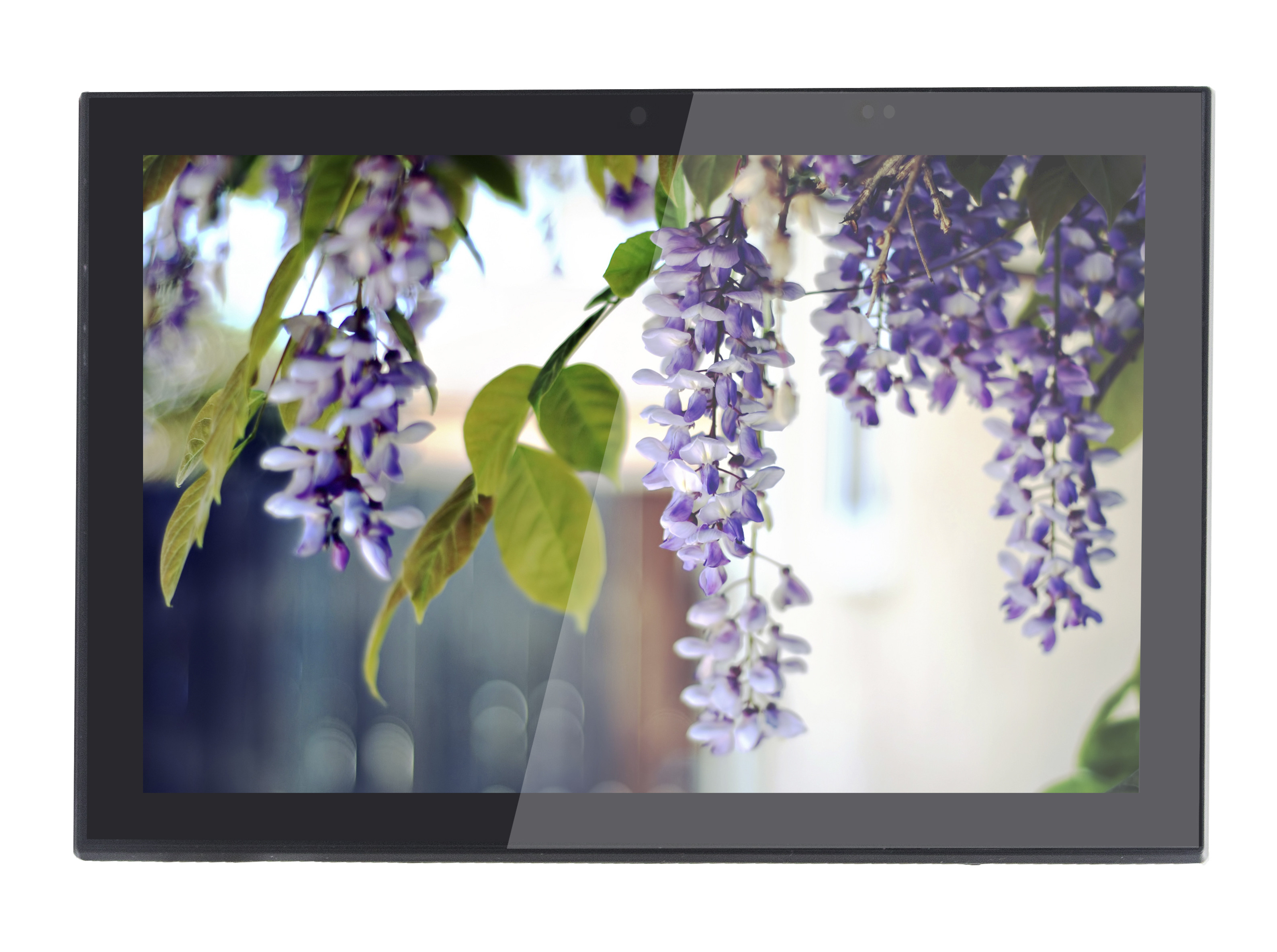

Android Based 10 Inch IPS Wall Mount PoE Panel PC UART Rs485 Touch Tablet Integrated LED Light
This 10 inch multi touch capacitive android rooted panel PC is supporting glass wall surface,wall flush mounting,which is perfectly suitable to building automation,conference room scheduling and industrial HMI application etc .
Once sample approved,available to customized with your own designing mounting bracket.
Especially,with the optional configuration POE(Power over Ethernet),only an ethernet cable is needed to connect power and data to the panel.
Four borders LED light is the most popular optional configuration from many clients different application.
Other optional accessories can be also available, NFC reader 13.56 Mhz(13.56MHz Mifare MF1 IC S50 CARD), front Proximity sensor & Ambient Light Sensor and Serial port RS485/RS232 as well as GPIO.
Of course gonna provide you the Source code for your further software developing/integration.
DC IN (9-24V)
Optional for one group RS232/RS485/GPIO
