|Place of Origin:||China|
|Minimum Order Quantity:||one unit|
|Packaging Details:||neutral packaging or custom|
|Delivery Time:||sample for 5-8 working days,batch order for 22-35 working days|
|Payment Terms:||PayPal,Bank Wire,Western Union etc.|
|Supply Ability:||3000 pieces every month|
|Interface:||DC IN/USB/RJ45/Micro USB||Power Supply:||DC IN (9 - 24 V)|
|Display:||10 Inch IPS Display, Resolution:1280 X 800, Brightness: 350 Cd/m2||Feature:||Microphone,Speakers,Camera, Wifi&Bluetooth|
|CPU:||ARM Cortex A83T Octa Core, 1.2Ghz||RAM:||2GB|
|Nand Flash:||8GB||Customized:||POE,LED Light,RS232/RS485/GPIO Etc.|
|Keyword:||10 Inch Touch Screen POE Panel PC|
10 Inch POE Power Industrial HMI Android Operation System Tablet PC Customized GPIO Input/Output

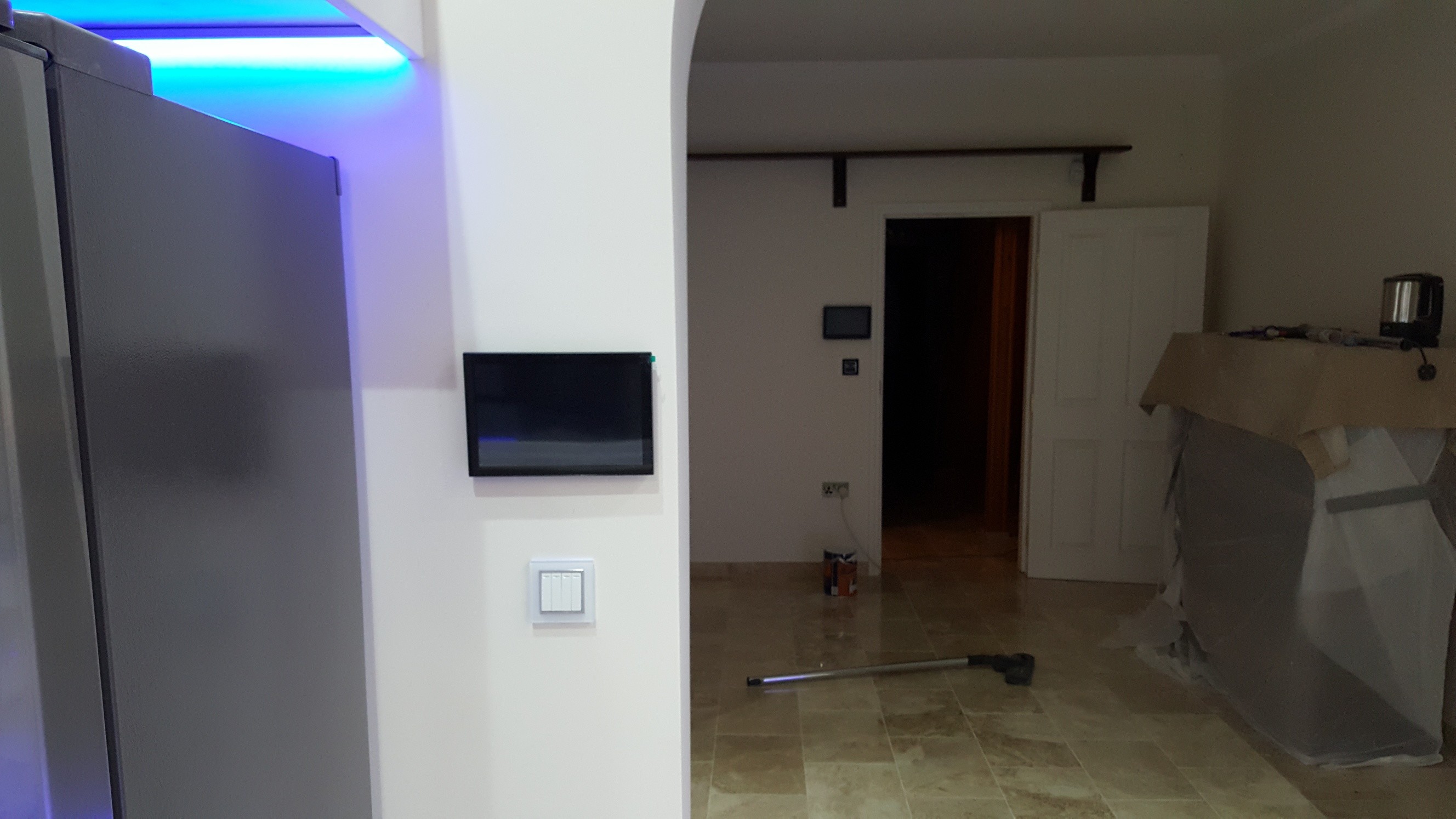

This 10 inch android 6.0.1 OS rooted tablet pc is supporting glass wall/on wall surface/wall flush mounting,which is perfectly suitable to building automation,conference room scheduling and industrial HMI application etc .
Once sample approved,available to customized with your own designing mounting bracket.
Especially,with the optional configuration POE(Power over Ethernet),only an ethernet cable is needed to connect power and data to the panel.
Other optional accessories can be also available: LED light,NFC reader 13.56 Mhz(13.56MHz Mifare MF1 IC S50 CARD), front Proximity sensor & Ambient Light Sensor,Serial port RS485/RS232 as well as GPIO.
Of course gonna provide you the Source code for your further software developing/integration.

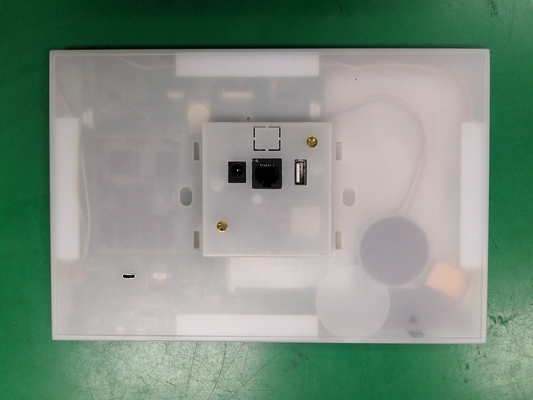

DC IN (9-24V)
Optional for one group RS232/RS485/GPIO
