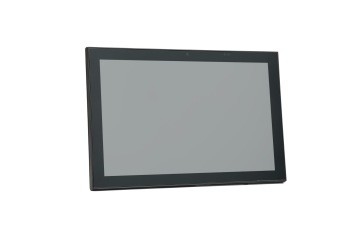

Wall Flush 10.1 inch HMI Android OS POE Power Tablet PC with Ethernet RJ45 Front Proximity Sensor

Home Products Tablet PC for Industrial Control

Wall Flush 10.1 inch HMI Android OS POE Power Tablet PC with Ethernet RJ45 Front Proximity Sensor

Product Details:

Place of Origin:	China
Brand Name:	Sibo
Certification:	CE FCC
Model Number:	Q8919

Payment & Shipping Terms:

Minimum Order Quantity:	one piece
Packaging Details:	neutral packaging or custom
Delivery Time:	7 days for sample order,25 days for batch order
Payment Terms:	PayPal,Bank Wire,Western Union etc.
Supply Ability:	over 3000 units each month

Contact Now

Detailed Product Description

Interface:	DC IN/USB/RJ45/Serial Port	Power Supply:	DC IN (9 - 24 V)
Display:	10 Inch IPS Display, Resolution:1280 X 800, Brightness: 350 Cd/m2	Feature:	Microphone,Speakers,Camera, Wifi, Bluetooth 4.0
CPU:	ARM Cortex A83T Octa Core, 1.2Ghz	RAM:	2GB
Nand Flash:	8GB	Special:	Adjustable LED Side Bars
Customized:	POE,front Proximity Sensor,RS232/RS485/GPIO Etc.	Keyword:	10 Inch Wall Mount Industrial Android Tablet

Wall Flush 10.1 inch HMI Android OS POE Power Tablet PC with Ethernet RJ45 Front Proximity Sensor

Our industrial grade 10 inch android 6.0.1 OS rooted touch tablet PC without battery is supporting wall mounting(or your own designing customized bracket),which is perfectly suitable to Intelligent House automation, enterprise room scheduling applications and industrial HMI etc .

What we can do:

Customize RS232, RS485, GPIO, front Proximity sensor & Ambient light sensor,NFC reader
Demo apps & demo source code for your programming
Customize boot logo/animation for free
Support OEM/ODM print logo on the surface of screen (in batch order)
Support packaging customization
Support sample order and small quantity

Basic specification

Android 6.0 OS rooted
camera
microphone
speaker
DC 9V-36V
RJ45 Ethernet port (POE optional)
USB 2.0

Screen

IPS screen with 178^.viewing sight
capacitive touch screen
Glass+Glass touch screen

Network

Wi-Fi
Lan(Ethernet)
Bluetooth

Advantages

Rooted device
Auto run app when tablet starts up
Customize boot logo/boot animation

Sample Standard Accessories (these features can be removed in bulk)

wi-fi&bluetooth
camera
power adapter

Optional Accessories

POE Feature (Power over Ethernet, IEEE802.3af, 48V)
GPIO/RS232/RS485(only one feature in one tablet)
Bracket for inwall mounting

10 Inch Wall Mount Industrial Android Tablet With PoE and LED Bars

<

Model Number		Q8919
Hardware Specs	Solution	Allwinner A83T processor
	CPU	8-Core ARM Cortex A7 CPU, 1.2Ghz
	Display	10.1 Inch IPS Display,Resolution:1280 x 800,Brightness:350 nit, Ratio:16:10
	Touch Screen	Capacitive Touch Screen, 5 Points Touch
	RAM	2GB
	Nand Flash	8GB
	Sound System	1W X 1, With Speaker Tunnel
	Dimensons	Height:167mm, Width:249 mm, Depth:26mm

Software Feature	System	Google Android 6.0.1
	Video	H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
	Audio	Integrated Hi-Fi 100dB audio codec Dual analog mic amplifiers
	Language	Support multi-languages
Interfaces	Front	Camera, Proximity Sensor (Optional)
	Back	USB Port 2.0, MICRO USB(OTG), DC JACK
		Ethernet Interface(RJ45)
	Bottom	Power On/Off Button, Pin Hole For Reboot

Network	WiFi+Bluetooth	WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
	Ethernet	Lan Network

Power Supply	PoE OR DC IN	IEEE802.3AF 48V, 12V DC IN

Installation bracket for inwall and onwall :

Q8919 inwall mount instruction:

https://youtu.be/jMmtg-hkLdY

Contact Details

Shenzhen Sibo Industrial & Development Co.,Ltd.

Contact Person: Mr. Jony Kung

Tel: 86-755-26977945

Fax: 86-755-26977945
