|Place of Origin:||China|
|Model Number:||CE FCC|
|Minimum Order Quantity:||one unit|
|Packaging Details:||neutral packaging or custom|
|Delivery Time:||sample for 5-8 working days,batch order for 22-35 working days|
|Payment Terms:||PayPal,Bank Wire,Western Union etc.|
|Supply Ability:||3000 pieces every month|
|Type:||Android Wall Mount POE Tablet PC||Power Supply:||POE / DC IN (9V - 36V)|
|Display:||7 Inch IPS Display, Resolution:1024 X 600, Brightness: 350 Cd/m2||Wall Mount:||Glass Wall Mount Inwall Flush Mount Etc.|
|Feature:||Microphone And Speakers,Camera, Wifi, Bluetooth 4.0||CPU:||ARM Cortex A83T Otca Core, 1.2Ghz|
|Customized:||LED Light,POE,RS485/RS232,etc.||Application:||Meeting Room Reservation Control|
|Color:||Black And White||RAM:||2GB|

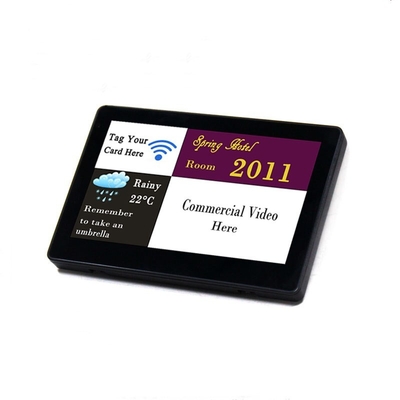

This model 7 inch android OS tablet PC supports three different wall mounting ways: inwall flush mount, onwall surface mount and glass wall mount.
With RJ45 ethernet port, USB port, customized POE,LED light,RS232/RS485 etc optional configurations for your specific demand.
The 7" industrial control tablet can be suitable to home automation, office room scheduling, and other control terminal applications.
|Hardware Specification||Solution||Allwinner’s A83T|
|CPU||ARM Cortex Octa-Core, 1.2Ghz|
|Display||7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2|
|Software Feature||System||Google Android 6.0.1|
|Video||H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
|Audio||One Speaker 1 X 1 Watt (Integrated 3W Amplifier)|
|DC IN Power Terminal (9V-36V)|
|Optional:RS232,RS485,1xGPIO IN, 1xGPIO OUT|
|Network||WIFI+BLUETOOTH||WIFI (802.11b/g/n), Bluetooth 4.0 support BLE|
|LAN Port||Ethernet RJ45|
|Power Supply||DC IN||DC 9V - 36V|
|Boot Up||Auto Boot||Auto Boot Up When Power Supplies|
|Power over Ethernet or PoE technology describes a system to safely transfer electrical power, along with data, to remote devices over standard category 5 cable in an Ethernet network. It does not require modification of existing Ethernet cabling infrastructure.
The IEEE 802.3af PoE standard provides up to 15.4 W of DC power (minimum 44 VDC and 350 mA) to each device. Only 12.95 W is assured to be available at the powered device as some power is dissipated in the cable.
Long distance transmission is available for our max power need about 7w, safe and easy to be used with other POE switch or POE injector ( IEEE 802.3af PoE standard)
|What is PD and PSE?|
|Power Over Ethernet, IEEE802.3af, is constructed by Power Sourcing Equipment (PSE) and Power Device (PD). Our Android Tablet works as a PD and which could powered by some PSE (POE injetor / POE switch)|
