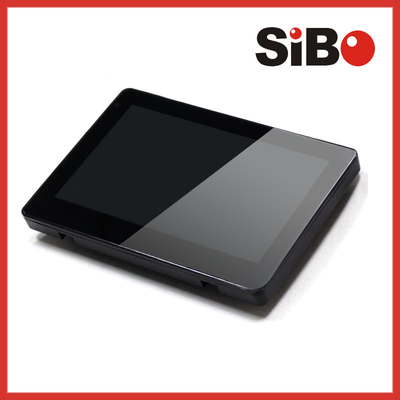

Room Controlling 7 Inch Android OS Angled Mounting Touch Screen With POE and RGB LED Light

Room Controlling 7 Inch Android OS Angled Mounting Touch Screen With POE and RGB LED Light

    • Room Controlling 7 Inch Android OS Angled Mounting Touch Screen With POE and RGB LED Light
    • Room Controlling 7 Inch Android OS Angled Mounting Touch Screen With POE and RGB LED Light
    • Room Controlling 7 Inch Android OS Angled Mounting Touch Screen With POE and RGB LED Light
  • Room Controlling 7 Inch Android OS Angled Mounting Touch Screen With POE and RGB LED Light

    Product Details:

    Place of Origin: China
    Brand Name: Sibo
    Certification: CE FCC
    Model Number: Q896S

    Payment & Shipping Terms:

    Minimum Order Quantity: one piece
    Packaging Details: neutral packaging or custom
    Delivery Time: 7 days for sample order,25 days for batch order
    Payment Terms: PayPal,Bank Wire,Western Union etc.
    Supply Ability: over 3000 units each month
    Contact Now
    Detailed Product Description
    Power Supply: POE / DC IN (9V - 36V) Display: 7 Inch IPS Display, Resolution:1024 X 600, Brightness: 350 Cd/m2
    Wall Mount: In Wall Flush Mount Feature: Microphone,Speakers,Camera, Wifi, Bluetooth 4.0
    CPU: ARM Cortex A83T Otca Core, 1.2Ghz Optional Configurations: POE
    Keywords: 7 Inch Wall Mount Android OS Touch Screen RAM: 2GB
    Flash: 8GB

    Room Controlling 7 Inch Android OS Angled Mounting Touch Screen With POE and RGB LED Light







    This 7 inch android 6.0.1 OS rooted tablet Q896S support inwall flush mount (and onwall surface/glass wall mount).A stylish and versatile wall mount touch screen designed specifically for enterprise room scheduling applications.

    With RJ45 ethernet port, USB port, available to add POE,RGB LED Light etc optional configurations.(will provide you LED light Source code for your further software developing)











    Advantage:



    • Android 6.0.1 OS rooted,with built-in google play store
    • Inwall flush(onwall surface) mounting
    • HDMI, USB 2.0,DC IN,RJ45
    • No physical buttons design & No battery design
    • Auto boot up when power supplies
    • DC IN 9-24V
    • POE (IEEE 802.3 af 48V)
    • Adding RGB LED light optional configuration,will provide you the source code for your software developing
    • free to customize with your logo as booting up image in your small MOQ sample order



    Wall Mount Conference Room Scheduling Android OS 7 Inch POE Powered Touch Dispaly With RGB LED lightWall Mount Conference Room Scheduling Android OS 7 Inch POE Powered Touch Dispaly With RGB LED lightWall Mount Conference Room Scheduling Android OS 7 Inch POE Powered Touch Dispaly With RGB LED lightWall Mount Conference Room Scheduling Android OS 7 Inch POE Powered Touch Dispaly With RGB LED light



    1.HDMI OUT

    2.Not available,only in earlier model Q896

    3.DC IN (9-24V)

    4.RJ45

    5.USB 2.0

    6.RS232/RS485/GPIO

    7.SLOTS FOR MOUNTING

    8.SCREWS FOR MOUNTING



    Specification:



    Model Number Q896S
    Hardware Specification Solution Allwinner’s A83T
    CPU ARM Cortex Octa-Core, 1.2Ghz
    Display 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
    RAM 2GB
    Nand Flash 8GB

    Software Feature System Google Android 6.0.1
    Video H.264 2160p video decoding,
    Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
    H.264 High Profile 1080p@30fps or 720@60fps encoding
    3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
    Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
    Audio One Speaker 1 X 1 Watt (Integrated 3W Amplifier)
    Language Support multi-languages

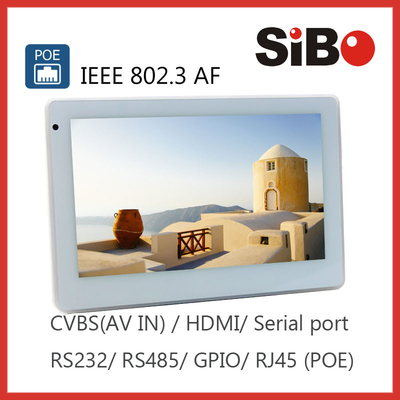

    Interfaces Back Ethernet Interface(RJ45)
    HDMI Out
    USB 2.0 Host
    DC IN Power Terminal (9V-36V)
    Optional:add RGB LED light,POE etc.

    Network WIFI+BLUETOOTH WIFI (802.11b/g/n), Bluetooth 4.0 support BLE
      LAN Port Ethernet RJ45

    Power Supply DC IN DC 9V - 36V

    Boot Up Auto Boot Auto Boot Up When Power Supplies







    Power over Ethernet or PoE technology describes a system to safely transfer electrical power, along with data, to remote devices over standard category 5 cable in an Ethernet network. It does not require modification of existing Ethernet cabling infrastructure.
    The IEEE 802.3af PoE standard provides up to 15.4 W of DC power (minimum 44 VDC and 350 mA) to each device. Only 12.95 W is assured to be available at the powered device as some power is dissipated in the cable.
    Long distance transmission is available for our max power need about 7w, safe and easy to be used with other POE switch or POE injector ( IEEE 802.3af PoE standard)
    What is PD and PSE?
    Power Over Ethernet, IEEE802.3af, is constructed by Power Sourcing Equipment (PSE) and Power Device (PD). Our Android Tablet works as a PD and which could powered by some PSE (POE injetor / POE switch)
      In/Out protocol Application
    PD
    Power Device
    Power Input
    from Ethernet(RJ45)
    Input POE 802.3 AF(15.4W) Home automation / Safety & protection
    POE 802.3 AT(30W)
    Benefits:

    Room Controlling 7 Inch Android OS Angled Mounting Touch Screen With POE and RGB LED Light
    • Cost Saving
    PoE significantly reduces the need for electricians to install conduit, electrical wiring, and outlets throughout the enterprise. With PoE only one cable – a simple CAT-5 Ethernet – is required. Estimates of cost savings using PoE range from $500 to $1,000 per port. In larger settings, this represents a major cost reduction.
    Room Controlling 7 Inch Android OS Angled Mounting Touch Screen With POE and RGB LED Light
    • Flexibility
    A PoE appliance or device can be located anywhere without the need for AC outlets. For example, wireless LAN access points can be located – and relocated – on or near ceilings, to fine tune optimum RF reception. For example, customers often find that access points are more effective on the ceiling, out of reach from an AC outlet.
    Room Controlling 7 Inch Android OS Angled Mounting Touch Screen With POE and RGB LED Light
    • Reliability
    Because PoE networks have fewer wires, there is less likelihood of an inadvertent power disruption (accidental shut off, etc). With an Uninterrupted Power Supply (UPS) power to the devices is assured during a power failure.
    Room Controlling 7 Inch Android OS Angled Mounting Touch Screen With POE and RGB LED Light
    • Network Control
    Using SNMP, network administrators can monitor and control powered devices, including resetting or shut-off. This allows increased security, as devices can be powered down when not in use, or if there is unauthorized access.
    Room Controlling 7 Inch Android OS Angled Mounting Touch Screen With POE and RGB LED Light
    • Safety
    Power mains are eliminated. Since only 48v DC is used, PoE conforms to Underwriter's Laboratories (UL) Safety Extra Low Volt
    SIBO Q896 Android Tablet PC RJ45 POE









    In wall flush mounting: (with metal enclosure)

    Wall Mount Conference Room Scheduling Android OS 7 Inch POE Powered Touch Dispaly With RGB LED lightWall Mount Conference Room Scheduling Android OS 7 Inch POE Powered Touch Dispaly With RGB LED light

    Wall Mount Conference Room Scheduling Android OS 7 Inch POE Powered Touch Dispaly With RGB LED light










    You might as well refer to our clients customized booting up image as below website link:

    https://mega.nz/#!p8YWTYja!2OPO-nx14yDOuFGJcGXyQXOz0o9n0R9NrWiklxjNSko
