    Product Details:

    Place of Origin: China
    Brand Name: Sibo
    Certification: CE FCC
    Model Number: Q8919

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Packaging Details: Neutral packing or Customized
    Delivery Time: 4-7 working days for samples,10-22 working days for batch order
    Payment Terms: Paypal,Bank transfer and Western Union,Credit Card(small orders)
    Supply Ability: 3000 units every month
    Contact Now
    Detailed Product Description
    Interface: DC IN/USB/RJ45/Micro USB Power Supply: DC IN (9 - 24 V)
    Display: 10 Inch IPS Display, Resolution:1280 X 800, Brightness: 350 Cd/m2 Feature: Microphone,Speakers,Camera, Wifi&Bluetooth
    CPU: ARM Cortex A83T Octa Core, 1.2Ghz RAM: 2GB
    Nand Flash: 8GB Customized: RS232/RS485/GPIO Etc.
    Keyword: Wall Mounting Android POE Touch Screen

    Integrated Android SOC Touch Displays Industrial 10" Wall Mount POE Tablet PC Auto Boot Up









    This industrial 10 inch android wall mount tablet pc can be customized with different optional configuration based on different clients requirement.



    Once sample approved,available to customized with your own designing mounting bracket.



    Especially the popular POE option,single RJ45 cable; clean installation. IEEE 802.3af 48V standard,only one ethernet cable can be provided both power and data to this slim 10" android tablet.



    And the adjustable RED/GREEN/BLUE LED light sides bars can be integrated with source code for software redeveloping.



    Optional accessories can be also available NFC reader (13.56MHz Mifare MF1 IC S50 CARD), front Proximity sensor & Ambient Light Sensor and Serial communication port RS485/RS232 as well as GPIO.













    Advantages:



    • Android 6.0.1 OS rooted,built in Google Play Store
    • Auto boot up when power supplies,directly into your Kiosk Mode
    • POE Ethernet RJ45 port ( IEEE 802.3 af 48V standard POE) or DC IN 9-24V
    • On wall surface(23 degree angled), inwall flush mounting,glass wall mounting
    • Available to add adjustable RGB LED light indicator
    • Programmable physical button (function A button or On/Off physical button)
    • free to provide the customized splash screen with your company logo

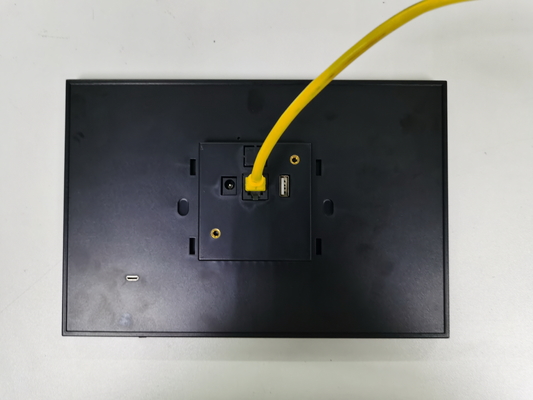

    Back Interface:

    • DC IN (9-24V)

    • RJ45

    • USB 2.0
    • Optional for one group RS232/RS485/GPIO

    • Micro USB port



    Network:

    • WLAN(WiFi 802.11b/g/n)
    • LAN Ethernet RJ45 port
    • Bluetooth 4.0 support Bluetooth Low Energy BLE
