Access Control System No Contact Smart Detecting Face Identification 8 inch Android OS IPS 800*1280 Display

Access Control System No Contact Smart Detecting Face Identification 8 inch Android OS IPS 800*1280 Display

    • Access Control System No Contact Smart Detecting Face Identification 8 inch Android OS IPS 800*1280 Display
    • Access Control System No Contact Smart Detecting Face Identification 8 inch Android OS IPS 800*1280 Display
    • Access Control System No Contact Smart Detecting Face Identification 8 inch Android OS IPS 800*1280 Display
    • Access Control System No Contact Smart Detecting Face Identification 8 inch Android OS IPS 800*1280 Display
  • Access Control System No Contact Smart Detecting Face Identification 8 inch Android OS IPS 800*1280 Display

    Product Details:

    Place of Origin: Guangdong China
    Brand Name: Sibo Or OEM
    Certification: CE
    Model Number: Q898X

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Packaging Details: standard packing
    Delivery Time: 4-7 working days for samples,10-22 working days for batch order
    Payment Terms: T/T, Western Union
    Supply Ability: 3000 units per month
    Contact Now
    Detailed Product Description
    Operating System: Android 7 CPU: RK3288 Quad-core
    Material: Aluminum Alloy Screen: 8.0 Inch IPS LCD Screen
    Storage: EMMC 8GB Products Status: Stock
    Display Resolution: 800*1280 Camera: Binocular Wide Dynamic 2.0 MP Camera/monocular Option
    Network: Ethernet And Wireless (Wifi) Interface: Ethernet,USB,RS485,Relay,Wiegand Etc.
    Operating Temperature: 0℃~60℃ Mounting: Tripod Standing Or Wall Mounted Or Customized

    Access Control System No Contact Smart Detecting Face Identification 8 inch Android OS IPS 800*1280 Display

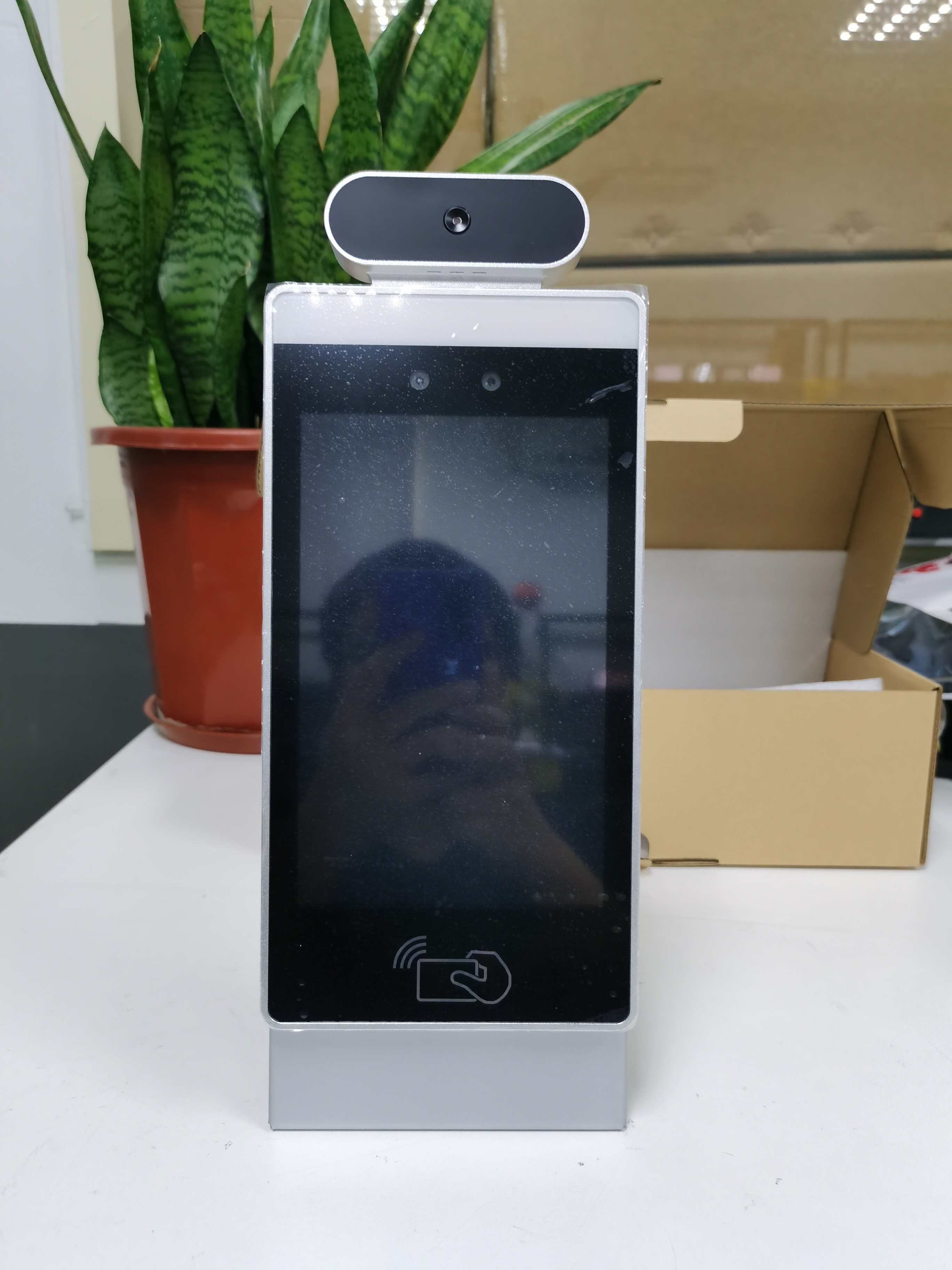

    Sibo smart detecting face identification 8 inch android OS IPS 800*1280 display can non-contact measure staff/visitor body temperature and face identification.
    The detection distance of 0.5-1.5 meters avoids the risk of personal contact and transmission.

    Also equipped with industrial-class binocular camera, live face recognition technology and infrared thermal imaging module to support face-with-mask identify.

    It also supports expansion of various peripherals such as ID card readers(125KHz and 13.56MHz), etc., which can be applied to gate passages and attendance system to achieve safe and efficient Building Pass Management.

    The kiosks support human body temperature detection and temperature display, with a marginal measurement error of ±0.2 °C (0.3 Meter) from close range, and ±0.5 °C from further awayA distance of 0.5 meters is recommended for most accurate readings, with 1 meter being the longest distance at which temperature can be readIt only takes a few seconds for detection and an alarm will sound automatically when temperature abnormality is detected - at a threshold set by you



    8 Inch Facial Recognition Android No Contact Kiosk 800*1280 LCD Monitor

    8 Inch Facial Recognition Android No Contact Kiosk 800*1280 LCD Monitor



    Access Control System No Contact Smart Detecting Face Identification 8 inch Android OS IPS 800*1280 Display



    DIMENSIONS

    Model
    Q898X




    Camera
    Resolution
    2 million pixels
    Type
    Binocular wide dynamic camera
    Aperture
    F2.4
    Focusing distance
    50-150cm
    White balance
    auto
    Photo flood light
    LED and IR dual photo flood light

    Screen
    Size
    8.0 inch IPS LCD screen
    Resolution
    800×1280
    Touch
    Not supported (optional support)

    Processor
    CPU
    RK3288 quad-core
    Storage
    EMMC 8G





    Interface
    Network module
    Ethernet and wireless (WIFI)
    Audio
    2.5W / 4R speakers
    USB
    1 USB OTG, 1 USB HOST standard A port
    Serial communication
    1 RS232 serial port
    Relay output
    1 door open signal output
    Wiegand
    One Wiegand 26/34 output
    Upgrade button
    Support Uboot upgrade button
    Wired network
    1 RJ45 Ethernet socket









    Function
    Face Detection
    Supports detection and tracking of multiple people at the same time
    Face library
    Up to 30,000
    1: N face recognition
    Support
    1: 1 face comparison
    Support
    Stranger detection
    Support
    Identify distance configuration
    Support
    UI interface configuration
    Support
    Upgrade remotely
    Support
    Interface
    Interfaces include device management, personnel / photo management, record query, etc.
    Deployment method
    Support public cloud deployment, privatized deployment, LAN use, stand-alone use







    Infrared thermal imaging module
    Temperature detection
    Support
    Temperature detection distance
    1 meter (optimal distance 0.5 meter)
    Temperature measurement accuracy
    ≤ ±0.5℃
    Temperature measurement range
    10℃~42℃
    Thermal field of view
    32 X 32℃
    Visitors' temperature is normal and released directly
    Support
    Abnormal temperature alarm
    Support (temperature alarm value can be set)




    General parameters
    Power
    DC12V(±10%)
    Operating temperature
    0℃~60℃
    Storage temperature
    -20℃~60℃
    Power consumption
    13.5W(Max)
    Installation method
    Tripod standing or wall mount bracket optional
    Size
    Standard:274.24*128*21.48(mm)
    IC card / ID card:296.18*132.88*25(mm)
    Packing list
    Machine * 1, power adapter * 1, manual * 1, certificate of conformity * 1




    8 Inch Facial Recognition Android No Contact Kiosk 800*1280 LCD Monitor8 Inch Facial Recognition Android No Contact Kiosk 800*1280 LCD Monitor
    :
    Access Control System No Contact Smart Detecting Face Identification 8 inch Android OS IPS 800*1280 Display
    Access Control System No Contact Smart Detecting Face Identification 8 inch Android OS IPS 800*1280 Display
    Access Control System No Contact Smart Detecting Face Identification 8 inch Android OS IPS 800*1280 DisplayAccess Control System No Contact Smart Detecting Face Identification 8 inch Android OS IPS 800*1280 DisplayAccess Control System No Contact Smart Detecting Face Identification 8 inch Android OS IPS 800*1280 Display
    Access Control System No Contact Smart Detecting Face Identification 8 inch Android OS IPS 800*1280 Display





    Q&A


    Q:Are you manufacturer?
    A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.


    Q: What is the minimum order?
    A: We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

    Q: Can we get the free sample?
    A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.



    Q: What's Your MOQ?

    A: 1 piece.





    Q: How to order and pay?

    A: We accept T/T (bank transfer), Western Union,Paypal etc.



    Q: What's Your Products Warranty?

    A: We Offer 12 Months Warranty after shipment sent.



    Q: How long it will take for delivery?

    A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.



    Q:How to repair the device if any problem ?

    A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.



    Q: Can you do customized and preload our software?

    A: Yes, with many years electronic products manufacturing experience, we can support customized order for you.
