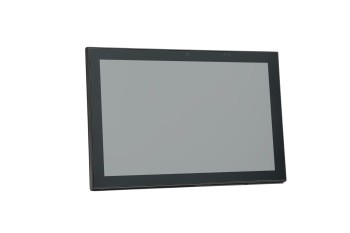

New Customized Mounting Bracket 10" Android POE Touch Panel Wifi Bluetooth Proximity Sensor Touch Screen

New Customized Mounting Bracket 10" Android POE Touch Panel Wifi Bluetooth Proximity Sensor Touch Screen

    • New Customized Mounting Bracket 10" Android POE Touch Panel Wifi Bluetooth Proximity Sensor Touch Screen
    • New Customized Mounting Bracket 10" Android POE Touch Panel Wifi Bluetooth Proximity Sensor Touch Screen
    • New Customized Mounting Bracket 10" Android POE Touch Panel Wifi Bluetooth Proximity Sensor Touch Screen
    • New Customized Mounting Bracket 10" Android POE Touch Panel Wifi Bluetooth Proximity Sensor Touch Screen
  • New Customized Mounting Bracket 10" Android POE Touch Panel Wifi Bluetooth Proximity Sensor Touch Screen

    Product Details:

    Place of Origin: China
    Brand Name: Sibo
    Certification: CE FCC
    Model Number: Q8919

    Payment & Shipping Terms:

    Minimum Order Quantity: one unit
    Packaging Details: Neutral packing or Customized
    Delivery Time: sample for around 5 working days,batch order for around 16 working days
    Payment Terms: Paypal,Bank transfer and Western Union,Credit Card(small orders)
    Supply Ability: 4000 Pieces One Month
    Contact Now
    Detailed Product Description
    Interface: DC IN/USB/RJ45/Micro USB Power Supply: DC IN (9 - 24 V)
    Display: 10 Inch IPS Display, Resolution:1280 X 800, Brightness: 350 Cd/m2 Feature: Microphone,Speakers,Camera, Wifi&Bluetooth
    CPU: ARM Cortex A83T Octa Core, 1.2Ghz RAM: 2GB
    Nand Flash: 8GB Customized: POE,LED Light,RS232/RS485/GPIO Etc.
    Keyword: 10 Inch Touch Screen POE Panel PC

    New Customized Mounting Bracket 10" Android POE Touch Panel Wifi Bluetooth Proximity Sensor Touch Screen









    This 10 inch capacitive touch screen android OS tablet PC is supporting wall flush,onwall surface,glass wall mounting,which is perfectly suitable to home automation system and industrial HMI application etc .

    Once sample approved,available to customized with your own designing mounting bracket.



    Especially,with the optional configuration POE(Power over Ethernet,IEEE802.3AF 48V),only one ethernet cable can be provided both power and data to this slim 10" android tablet.



    Four borders LED light is the most popular optional configuration from many clients different application requirement.



    Other optional accessories can be also available too, NFC reader (13.56MHz Mifare MF1 IC S50 CARD), front Proximity sensor & Ambient Light Sensor and Serial port RS485/RS232 as well as GPIO.



    Of course gonna provide you the Source code for your further software developing/integration.













    Advantages:



    • Android 6.0.1 OS rooted,built in Google Play Store
    • Auto boot up when power supplies,directly into your Kiosk Mode
    • POE Ethernet RJ45 port ( IEEE 802.3 af 48V standard POE) or DC IN 9-24V
    • Front proximity and light sensor
    • On wall surface(23 degree angled), inwall flush mounting,glass wall mounting
    • Available to customize adjustable RGB LED light,NFC Reader,RS232/RS485/GPIO etc.
    • Programmable physical buttons(function A button)
    • free to provide the customized splash screen with your company logo





    Back Interface:

    • DC IN (9-24V)

    • RJ45

    • USB 2.0
    • Optional for one group RS232/RS485/GPIO

    • Micro USB port



    Network:

    • WLAN(WiFi 802.11b/g/n)
    • LAN Ethernet RJ45 port
    • Bluetooth 4.0 support Bluetooth Low Energy BLE
