Customized In Wall Mount Android POE Control Panel 10.1 inch LCD Touch Screen Video Conference Schedul Device

Customized In Wall Mount Android POE Control Panel 10.1 inch LCD Touch Screen Video Conference Schedul Device

    • Customized In Wall Mount Android POE Control Panel 10.1 inch LCD Touch Screen Video Conference Schedul Device
    • Customized In Wall Mount Android POE Control Panel 10.1 inch LCD Touch Screen Video Conference Schedul Device
    • Customized In Wall Mount Android POE Control Panel 10.1 inch LCD Touch Screen Video Conference Schedul Device
    • Customized In Wall Mount Android POE Control Panel 10.1 inch LCD Touch Screen Video Conference Schedul Device
  • Customized In Wall Mount Android POE Control Panel 10.1 inch LCD Touch Screen Video Conference Schedul Device

    Product Details:

    Place of Origin: China
    Brand Name: Sibo
    Certification: CE FCC
    Model Number: Q8919

    Payment & Shipping Terms:

    Minimum Order Quantity: Two units
    Packaging Details: neutral packaging or custom
    Delivery Time: 7 days for sample order,25 days for batch order
    Payment Terms: PayPal,Bank Wire,Western Union etc.
    Supply Ability: 3000 Units one month
    Contact Now
    Detailed Product Description
    Interface: DC IN/USB/RJ45/Serial Port Power Supply: DC IN (9 - 24 V)
    Display: 10 Inch IPS Display, Resolution:1280 X 800, Brightness: 350 Cd/m2 Feature: Microphone,Speakers,Camera, Wifi, Bluetooth 4.0
    CPU: ARM Cortex A83T Octa Core, 1.2Ghz RAM: 2GB
    Nand Flash: 8GB Special: Adjustable LED Side Bars
    Customized: POE,front Proximity Sensor,RS232/RS485/GPIO Etc. Keyword: 10 Inch Wall Mount Industrial Android Tablet

    Customized In Wall Mount Android POE Control Panel 10.1 inch LCD Touch Screen Video Conference Schedul Device









    Our newest 10 inch android 6.0.1 OS rooted touch screen is supporting wall mounting(or your own designing customized bracket),which is perfectly suitable to enterprise room scheduling applications and industrial HMI etc .















    What we can do:

    1. Customize RS232, RS485, NFC, GPIO, Proximity sensor & Ambient light sensor
    2. Offer sample APP & demo code for your program
    3. Customize boot logo/animation in sample for free
    4. Support print logo on the surface of screen (in batch order)
    5. Support packaging customization
    6. Support OEM/ODM
    7. Support sample order and small quantity

    Basic specification

    • Android 6.0 OS
    • POE (optional)
    • camera
    • microphone
    • speaker
    • DC 9V-36V, AC100V-240V
    • RJ45 Ethernet port
    • USB 2.0

    Screen

    • IPS screen with 178.viewing sight
    • capacitive touch screen
    • Glass+Glass touch screen



    Network

    • Wi-Fi
    • Lan(Ethernet)
    • Bluetooth

    Advantages

    • Rooted device
    • Support auto-web
    • Auto run app when tablet starts up
    • Customize boot logo/boot animation





    Sample Standard Accessories (these features can be removed in bulk)

    • wi-fi&bluetooth
    • camera
    • power adapter



    Optional Accessories



    • POE Feature (Power over Ethernet, IEEE802.3af, 48V)
    • GPIO/RS232/RS485(only one feature in one tablet)
    • Bracket for inwall mounting





    10 Inch Wall Mount Industrial Android Tablet With PoE and LED Bars

    10 Inch Wall Mount Industrial Android Tablet With PoE and LED Bars

    10 Inch Wall Mount Industrial Android Tablet With PoE and LED Bars

    10 Inch Wall Mount Industrial Android Tablet With PoE and LED Bars

    10 Inch Wall Mount Industrial Android Tablet With PoE and LED Bars

    10 Inch Wall Mount Industrial Android Tablet With PoE and LED Bars
    Customized In Wall Mount Android POE Control Panel 10.1 inch LCD Touch Screen Video Conference Schedul Device
    <

    Model Number Q8919
    Hardware Specs Solution Allwinner A83T processor
    CPU 8-Core ARM Cortex A7 CPU, 1.2Ghz
    Display 10.1 Inch IPS Display,Resolution:1280 x 800,Brightness:350 nit, Ratio:16:10
    Touch Screen Capacitive Touch Screen, 5 Points Touch
    RAM 2GB
    Nand Flash 8GB
    Sound System 1W X 1, With Speaker Tunnel
    Dimensons Height:167mm, Width:249 mm, Depth:26mm

    Software Feature System Google Android 6.0.1
    Video H.264 2160p video decoding,
    Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
    H.264 High Profile 1080p@30fps or 720@60fps encoding
    3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
    Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
    Audio Integrated Hi-Fi 100dB audio codec
    Dual analog mic amplifiers
    Language Support multi-languages

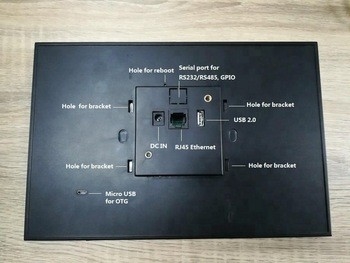

    Interfaces Front Camera, Proximity Sensor (Optional)
    Back USB Port 2.0, MICRO USB(OTG), DC JACK
    Ethernet Interface(RJ45)
    Bottom Power On/Off Button, Pin Hole For Reboot

    Network WiFi+Bluetooth WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
    Ethernet Lan Network

    Power Supply PoE OR DC IN IEEE802.3AF 48V, 12V DC IN


    Installation bracket for inwall and onwall :



    Q8919 inwall mount instruction:

    https://youtu.be/jMmtg-hkLdY
